Comprehensive Technical Analysis of AC Motor Stator Winding Materials: Copper vs. Aluminum and Advanced Conductors

1. Fundamental Importance of Stator Winding Material Selection

The stator winding material represents one of the most critical design decisions in AC motor engineering, directly influencing efficiency, thermal performance, reliability, and lifecycle economics. Stator I²R (ohmic) losses typically account for over 30% of total motor losses at rated load in efficient motor designs [^18^]. The selection between copper, aluminum, or advanced conductor materials involves complex trade-offs between electrical performance, thermal management, mechanical durability, weight constraints, and cost considerations.

This analysis provides a comprehensive technical examination of conductor material options, their fundamental physical properties, manufacturing implications, and application-specific selection criteria for modern AC motor design.

2. Fundamental Physical and Electrical Properties

2.1 Conductivity and Resistivity Characteristics

The electrical conductivity of winding materials fundamentally determines I²R losses and operational efficiency. Copper remains the international standard for electrical conductivity, defined as 100% IACS (International Annealed Copper Standard), with a conductivity of 58.0 MS/m at 20°C [^15^]. Aluminum, by comparison, achieves only 61% IACS (37.7 MS/m), requiring significantly larger cross-sectional areas to carry equivalent current [^15^][^17^].

2.2 Implications of Conductivity Differential

The 39% conductivity deficit of aluminum compared to copper necessitates engineering compensations that cascade through motor design. To achieve equivalent current-carrying capacity, aluminum conductors require approximately 1.6 times the cross-sectional area of copper [^17^]. This directly impacts:

• Slot Fill Factor: Reduced conductor packing density in stator slots, potentially requiring larger frame sizes or reduced power density
• End-Winding Volume: Increased overhang dimensions affecting overall motor length and cooling characteristics
• I²R Losses: Higher resistive losses at equivalent current, directly impacting efficiency ratings and thermal management requirements

3. Detailed Performance Comparison: Copper vs. Aluminum Stator Windings

3.1 Efficiency and Energy Loss Analysis

The efficiency differential between copper and aluminum wound motors represents one of the most significant performance distinctions. Empirical studies demonstrate that aluminum-wound motors are typically 1.5% to 2% less efficient than equivalent copper-wound designs [^17^]. If aluminum wire of identical diameter is substituted for copper without design compensation, motor losses increase by at least 3% [^23^].

For most industrial applications, this efficiency deficit erodes aluminum's initial cost advantage within 2-5 years of operation [^17^]. However, optimized aluminum motor designs that properly scale conductor cross-section can narrow this efficiency gap to approximately 0.5-1.0 percentage points.

3.2 Thermal Performance and Heat Dissipation

Thermal management represents a critical differentiator between copper and aluminum windings. Copper's superior thermal conductivity (401 W/m·K vs. 237 W/m·K) enables more effective heat transfer from winding hot spots to cooling systems [^15^][^22^]. This characteristic manifests in several operational advantages:

• Operating Temperature: Copper-wound motors typically operate 10-20°C cooler than aluminum equivalents under identical load conditions [^22^]
• Insulation Life: The "10-degree rule" states that insulation life approximately doubles for every 10°C reduction in operating temperature, significantly favoring copper's thermal advantages [^15^]
• Overload Capability: Lower steady-state temperatures provide greater thermal margins for transient overload conditions

3.3 Mechanical Properties and Manufacturing Considerations

The mechanical characteristics of winding materials profoundly influence manufacturing processes, long-term reliability, and maintenance requirements:

3.4 Weight and Size Considerations

Despite requiring larger cross-sections, aluminum's significantly lower density (2.70 g/cm³ vs. 8.96 g/cm³) results in substantial weight advantages. Even after upsizing conductors to compensate for conductivity, aluminum windings typically weigh approximately 50% of equivalent copper windings [^17^]. This characteristic makes aluminum the preferred choice for:

• Electric Vehicle Traction Motors: Where unsprung mass reduction directly impacts vehicle dynamics and range
• Aerospace Applications: Where every gram of weight reduction translates to fuel savings and payload capacity
• Portable Power Tools: Where operator fatigue and maneuverability are critical
• Large Industrial Motors: Where handling and installation logistics favor reduced mass

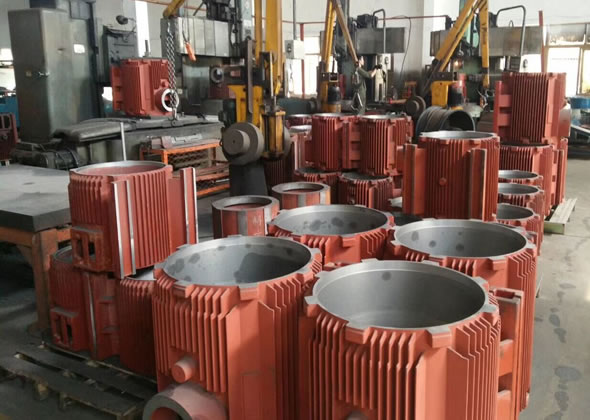

The trade-off is that motors utilizing aluminum windings may require 10-15% larger frame sizes to accommodate the increased conductor volume, potentially impacting installation footprint and power density metrics [^17^].

4. Economic Analysis: Lifecycle Cost Considerations

4.1 Initial Material Costs

Aluminum holds a significant advantage in raw material costs, typically costing 30-50% less per unit volume than copper [^15^]. Additionally, aluminum prices have historically demonstrated greater stability compared to the volatility of copper commodity markets [^25^]. However, this initial advantage must be evaluated against several cost amplification factors:

• Increased Material Volume: The 1.6:1 cross-sectional area requirement partially offsets the per-unit-mass cost advantage
• Specialized Manufacturing Equipment: Aluminum winding often requires dedicated tooling and modified winding machines
• Connection Hardware: Specialized terminals, transition connectors, and anti-oxidation treatments add incremental costs
• Quality Control: More stringent inspection protocols required to ensure connection integrity and prevent field failures

4.2 Operating Cost Differential

The economic calculus shifts dramatically when evaluating total cost of ownership (TCO) over the motor's operational lifespan. For a 75 kW industrial motor operating 6,000 hours annually:

This analysis demonstrates that despite a 15% initial cost advantage, aluminum-wound motors typically exhibit 3-5% higher total lifecycle costs in continuous industrial applications. The economic breakeven point varies with duty cycle, energy costs, and specific application requirements.

5. Advanced Conductor Materials and Emerging Technologies

5.1 Silver and Gold Conductors

Silver possesses the highest electrical conductivity of any metal (106% IACS), making it theoretically ideal for maximum efficiency applications. However, its prohibitive cost restricts usage to specialized aerospace and military applications where performance outweighs economic constraints [^15^].

Gold offers exceptional corrosion resistance and connection reliability in extreme environments, though its conductivity (70% IACS) is inferior to copper. Gold-plated contacts and bonding wires are employed in high-reliability applications where oxidation resistance is paramount [^15^].

5.2 Carbon Nanotube (CNT) Conductors

Carbon nanotubes represent an emerging conductor technology with unique property profiles:

• Extreme Lightweight: Density approximately 1.3-1.4 g/cm³—less than half that of aluminum
• High-Frequency Performance: Superior conductivity at frequencies >1 MHz due to reduced skin effect
• Mechanical Strength: Tensile strength exceeding 100 GPa enables novel structural integration possibilities
• Current Limitations: High material costs, manufacturing scalability challenges, and lower bulk conductivity compared to copper for DC and low-frequency applications [^15^]

5.3 Copper-CNT Hybrid Conductors

Hybrid conductors combining copper matrices with CNT reinforcements aim to synergize the high conductivity of copper with the lightweight and thermal management benefits of nanotubes. These materials show particular promise for:

• High-frequency inverter-fed motors where skin effect losses are significant
• Aerospace applications demanding maximum power-to-weight ratios
• Electric vehicle traction motors where efficiency and weight are simultaneously critical [^15^]

5.4 Superconducting Windings

For ultra-high-power applications (typically >10 MW), high-temperature superconducting (HTS) windings eliminate ohmic losses entirely, enabling efficiencies approaching 99%. However, the requirement for cryogenic cooling systems (typically 20-77 K) limits applicability to specialized industrial and scientific applications where the efficiency gains justify the complex infrastructure requirements.

6. Application-Specific Material Selection Guidelines

6.1 Industrial Motor Applications

6.2 Electric Vehicle and Transportation

The electric vehicle sector presents unique material selection challenges balancing efficiency, weight, and cost. Current industry trends include:

• Hairpin Winding Technology: Flat copper conductors enabling >70% slot fill factors and improved thermal performance
• Hybrid Designs: Aluminum stator windings with copper rotor cages to balance weight and efficiency
• Advanced Cooling Integration: Direct oil cooling of windings enabling higher current densities regardless of conductor material

6.3 Renewable Energy Systems

Wind turbine generators and solar tracking motors prioritize long operational life (20-25 years) and minimal maintenance. Copper windings dominate this sector due to proven reliability, though aluminum is gaining traction in large direct-drive wind generators where the absolute mass of copper would be prohibitive.

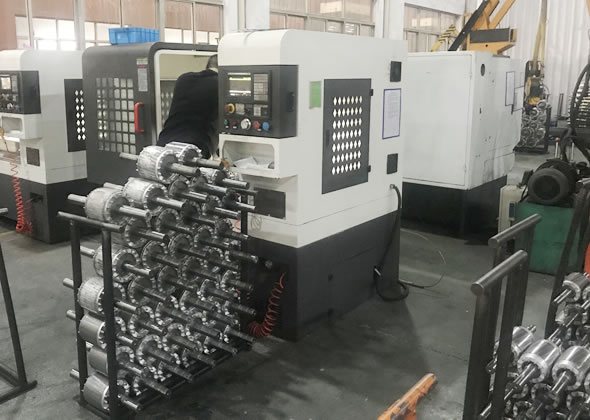

7. Manufacturing Process Implications

7.1 Winding Techniques and Equipment

The mechanical properties of conductor materials necessitate distinct manufacturing approaches:

• Copper Winding: Standard round wire winding equipment; excellent formability enables random wound and precision wound configurations; readily automated for high-volume production
• Aluminum Winding: Requires modified tension control systems to prevent work-hardening and wire breakage; larger wire gauges may necessitate specialized forming tooling; connection operations require oxide removal and specialized crimping or welding equipment [^15^]
• Flat Wire (Hairpin): Both materials compatible with emerging hairpin winding technology, though copper's superior formability enables tighter bend radii and more compact end-winding configurations

7.2 Connection and Termination Technologies

The connection integrity of stator windings is critical for long-term reliability. Copper's compatibility with multiple connection methods (soldering, brazing, welding, crimping) provides manufacturing flexibility [^15^]. Aluminum requires more stringent process control:

• Oxide Removal: Aluminum's rapid oxide formation necessitates immediate termination after stripping or application of specialized fluxes
• Galvanic Isolation: Connections between aluminum windings and copper terminals require bimetallic transition hardware or specialized coatings to prevent galvanic corrosion
• Crimping Technology: Aluminum-compatible crimp terminals with proper barrel sizing and serration patterns to break through oxide layers and establish reliable gas-tight connections

7.3 Quality Control and Testing

Material identification and verification are essential for quality assurance. Non-destructive testing methods to distinguish copper from aluminum windings include resistance measurement (copper exhibits lower resistance), density testing (copper 8.96 g/cm³ vs. aluminum 2.7 g/cm³), thermal imaging (copper dissipates heat more efficiently), and eddy current testing [^22^]. Post-manufacturing verification ensures compliance with specifications and prevents material substitution fraud.

8. Insulation System Integration

The conductor material selection must be harmonized with the complete insulation system to ensure thermal and electrical compatibility. Modern motor insulation comprises multiple hierarchical layers [^15^][^16^]:

8.1 Wire Enamel (Primary Insulation)

The polymer coating applied directly to conductor surfaces must accommodate the material's thermal expansion characteristics:

• Polyesterimide (PEI): Class F (155°C) rating with excellent mechanical properties; compatible with both copper and aluminum
• Polyamideimide (PAI): Class H (180°C) with superior cut-through resistance; essential for high-temperature aluminum applications where thermal expansion stresses are greater
• Polyimide: Class C (220°C+) for extreme-temperature applications; accommodates aluminum's higher thermal expansion coefficient

8.2 Slot Insulation and Ground Wall Systems

The differential thermal expansion between conductors and steel laminations (α_steel ≈ 12 μm/m·K) creates mechanical stresses that the insulation system must accommodate. For aluminum windings with higher expansion coefficients, enhanced slot insulation utilizing aramid paper (Nomex) or NMN (Nomex-Mica-Nomex) composites provides necessary mechanical compliance and thermal endurance [^15^].

8.3 Impregnation Resins

Vacuum Pressure Impregnation (VPI) with solventless epoxy or polyester resins bonds winding components into a monolithic structure, mitigating vibration-induced wear and enhancing thermal conductivity. The resin system selection must consider chemical compatibility with conductor surfaces—aluminum requires oxide-inhibiting resin formulations to prevent galvanic reactions with any steel components.

9. Environmental and Sustainability Considerations

9.1 Material Sourcing and Supply Chain

Copper mining and refining carry significant environmental footprints, though the metal's infinite recyclability without performance degradation mitigates long-term impacts. Approximately 80% of historical copper production remains in active use. Aluminum production is highly energy-intensive (electrolysis of alumina), but the metal's lower density reduces transportation emissions and its recyclability is equally robust.

9.2 Lifecycle Efficiency Impact

The environmental impact of conductor material selection extends far beyond manufacturing. Over a 20-year motor life, the energy savings from copper's efficiency advantage (approximately 2% improvement over aluminum) typically outweigh the embodied energy differences of material production by orders of magnitude. For a 100 kW motor, the 2% efficiency advantage translates to approximately 35 MWh of energy savings over the operational lifespan—equivalent to avoiding 15-20 tons of CO₂ emissions depending on grid carbon intensity.

9.3 End-of-Life Recycling

Both copper and aluminum enjoy well-established recycling infrastructure with high recovery rates (>90%). However, mixed-material motors (aluminum windings with copper rotor cages, for example) require separation processes that increase recycling costs. Design for recyclability increasingly favors single-material or easily separable material combinations.

10. Future Trends and Industry Outlook

The motor winding material landscape continues evolving in response to efficiency regulations, electrification trends, and sustainability imperatives:

• IE5 Efficiency Standards: Ultra-premium efficiency requirements (losses 20% below IE4) will drive adoption of maximum-conductivity materials and optimized slot fill configurations
• Electric Vehicle Proliferation: The EV sector's demand for lightweight, high-efficiency motors will accelerate development of aluminum optimization and hybrid conductor technologies
• Advanced Manufacturing: Additive manufacturing and precision forming technologies enable novel conductor geometries (trapezoidal, segmented) that maximize slot utilization regardless of material
• Material Scarcity Mitigation: Research into copper-aluminum clad conductors and advanced joining techniques aims to combine copper's connection reliability with aluminum's weight and cost advantages

11. Conclusion

The selection of stator winding materials for AC motors represents a complex optimization problem balancing electrical performance, thermal management, mechanical reliability, economic constraints, and application-specific requirements. Copper remains the dominant technology for high-efficiency, continuous-duty industrial applications due to its superior conductivity, thermal performance, and proven reliability over decades of operational experience.

Aluminum, despite its 39% conductivity deficit, offers compelling advantages in weight-sensitive applications (electric vehicles, aerospace) and cost-sensitive intermittent-duty applications where initial capital constraints outweigh lifecycle efficiency considerations. Properly engineered aluminum motors with upsized conductors can narrow the efficiency gap to acceptable levels for many applications.

Emerging technologies including carbon nanotube composites and advanced hybrid conductors promise to reshape the material landscape, though copper and aluminum will remain the dominant choices for the foreseeable future. Engineers must evaluate the complete system—including insulation compatibility, connection technologies, manufacturing capabilities, and total lifecycle economics—rather than focusing solely on material conductivity or initial cost. As global efficiency standards tighten and electrification accelerates, informed material selection becomes increasingly critical to achieving sustainable, cost-effective motor system performance.

Technical Summary

Stator winding material selection fundamentally influences AC motor efficiency, reliability, and economics. Copper delivers superior performance (100% IACS, 401 W/m·K) for continuous industrial applications, while aluminum provides weight and cost advantages (61% IACS, 2.7 g/cm³) for transportation and intermittent-duty applications. Advanced materials including CNT composites and hybrid conductors are emerging for specialized high-performance applications.
