YL90S-4 1.5HP YL100L-2 Single Phase 220V Electric Mono Motor Induction 5hp Single Phase 220 volt
YL, YY, YC, ML

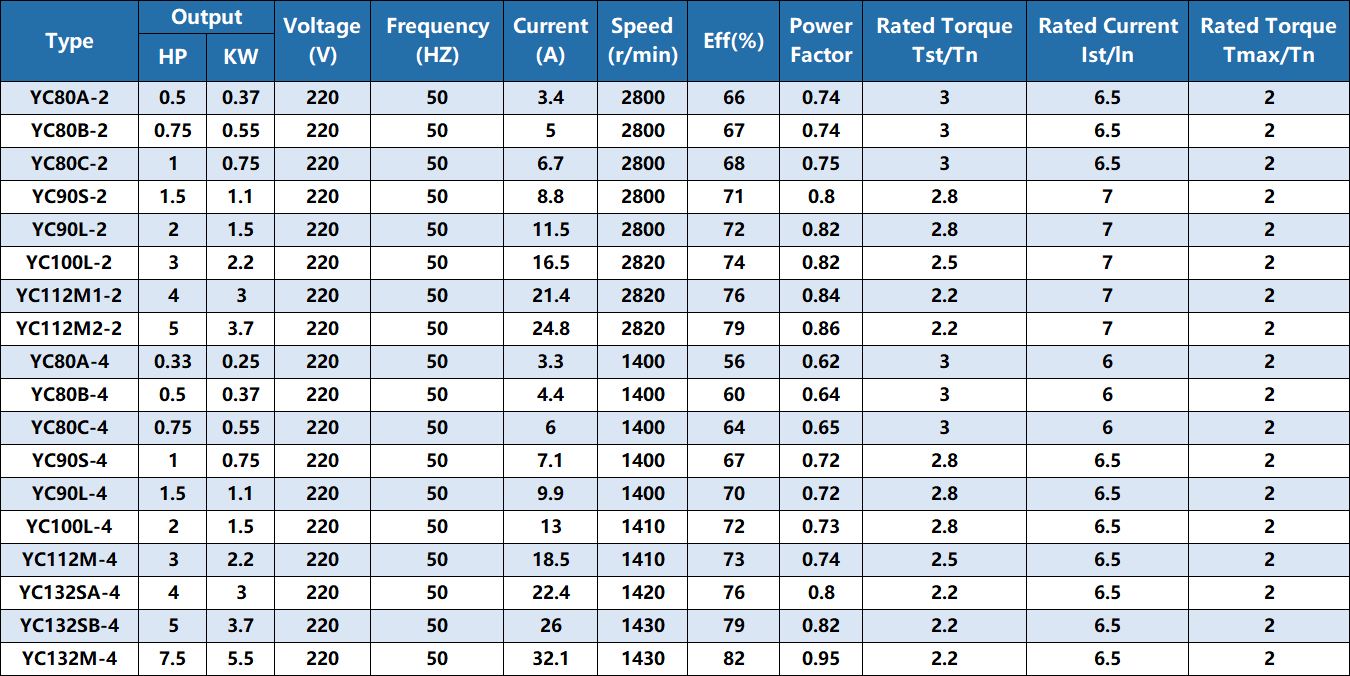

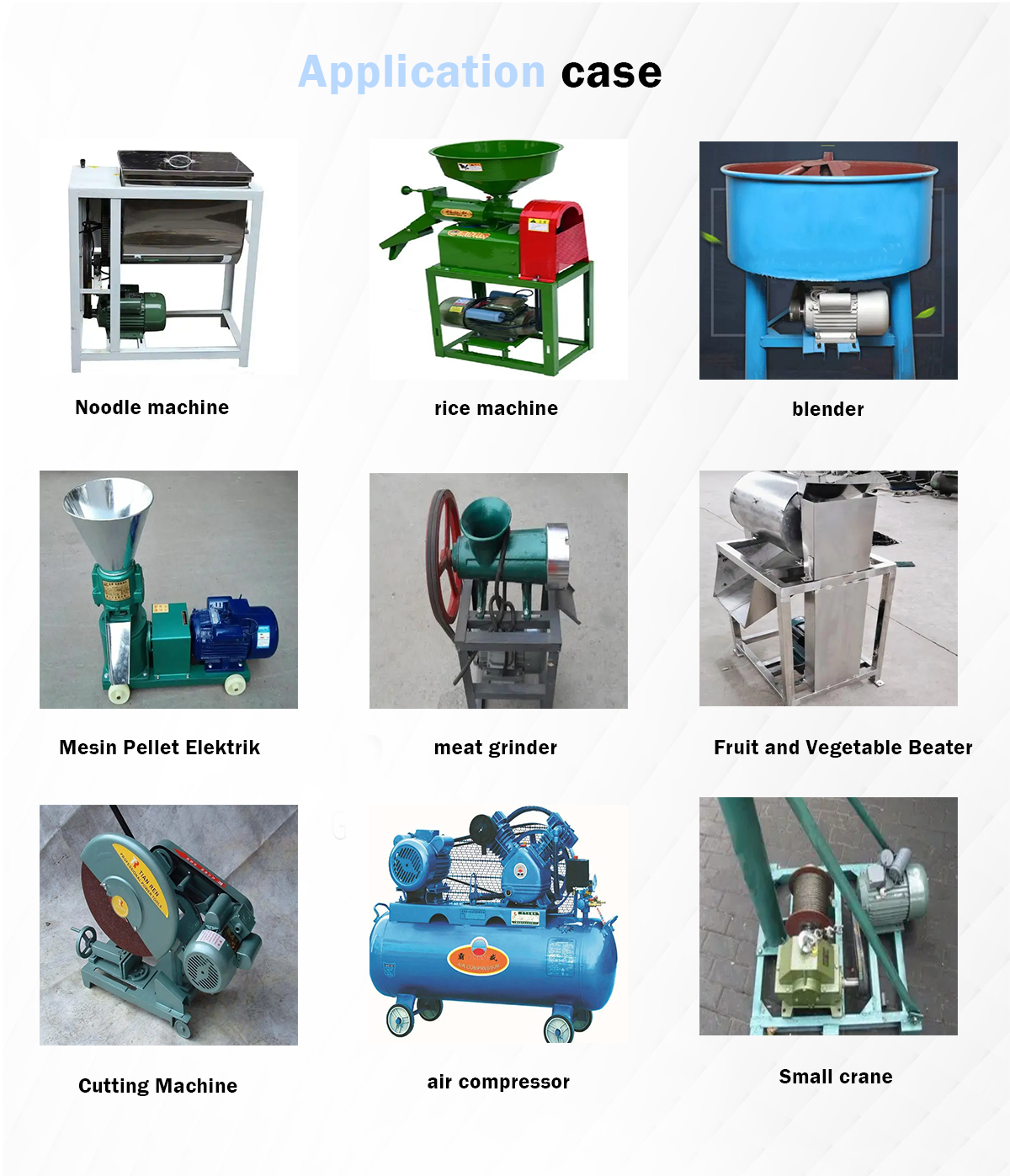

YC series single-phase dual-capactior asynchronous motor is designed and manufactured in according with national standard, newly developed by our company with low noise, compact construction, light weight, easy maintenance etc. These motors are widely used on air compressors, pumps, fans, refrigerator, medical instruments, small-size machine etc. especially for occasion where only single-phase power supply is available
minimum order
1 piece
Supply Ability
2000.0piece / Week
Country of Origin
Ningbo, Shanghai, Guangzhou
Quantity:
USD30.00 - USD200.00
/ piece
Products Description

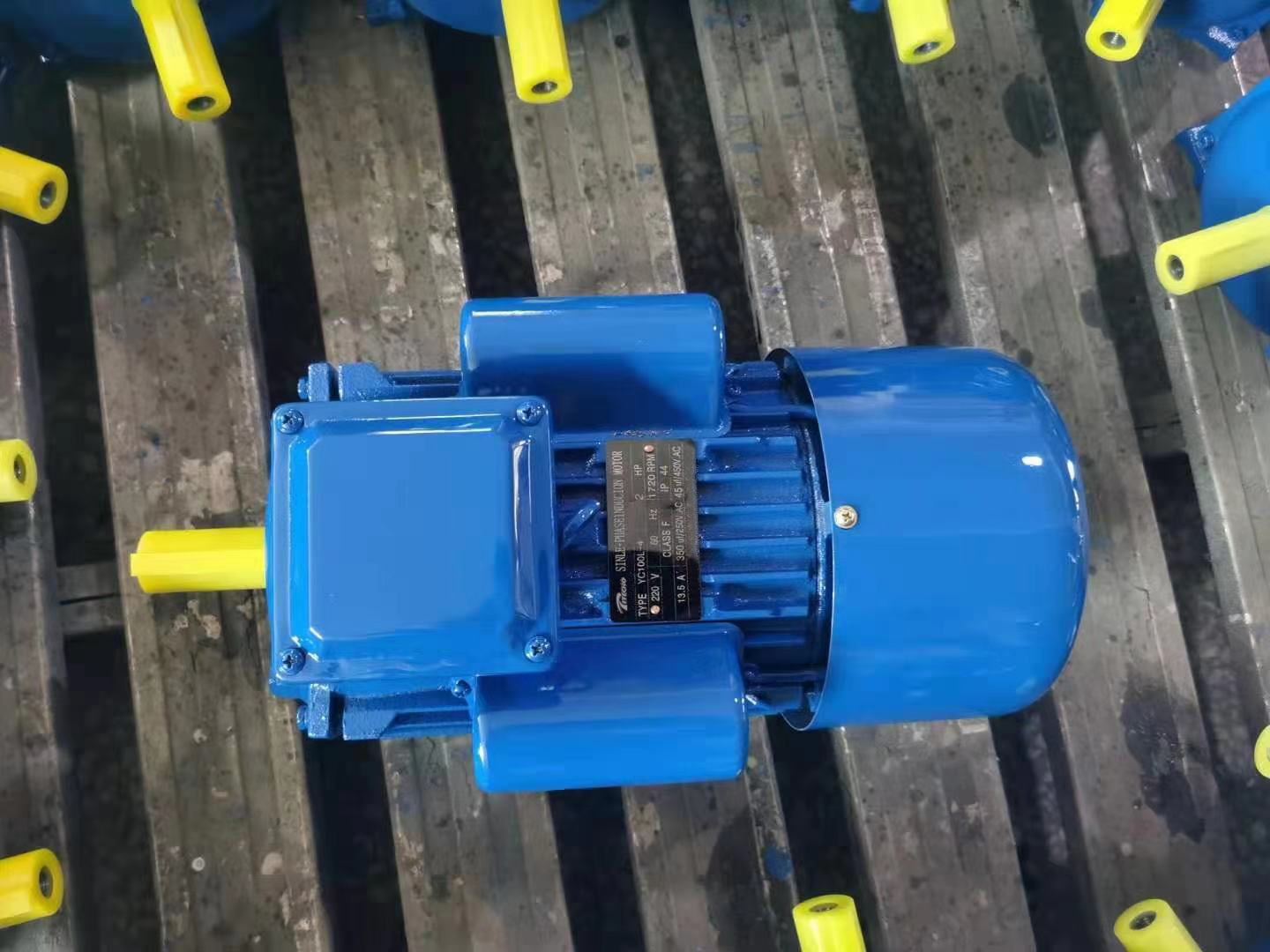

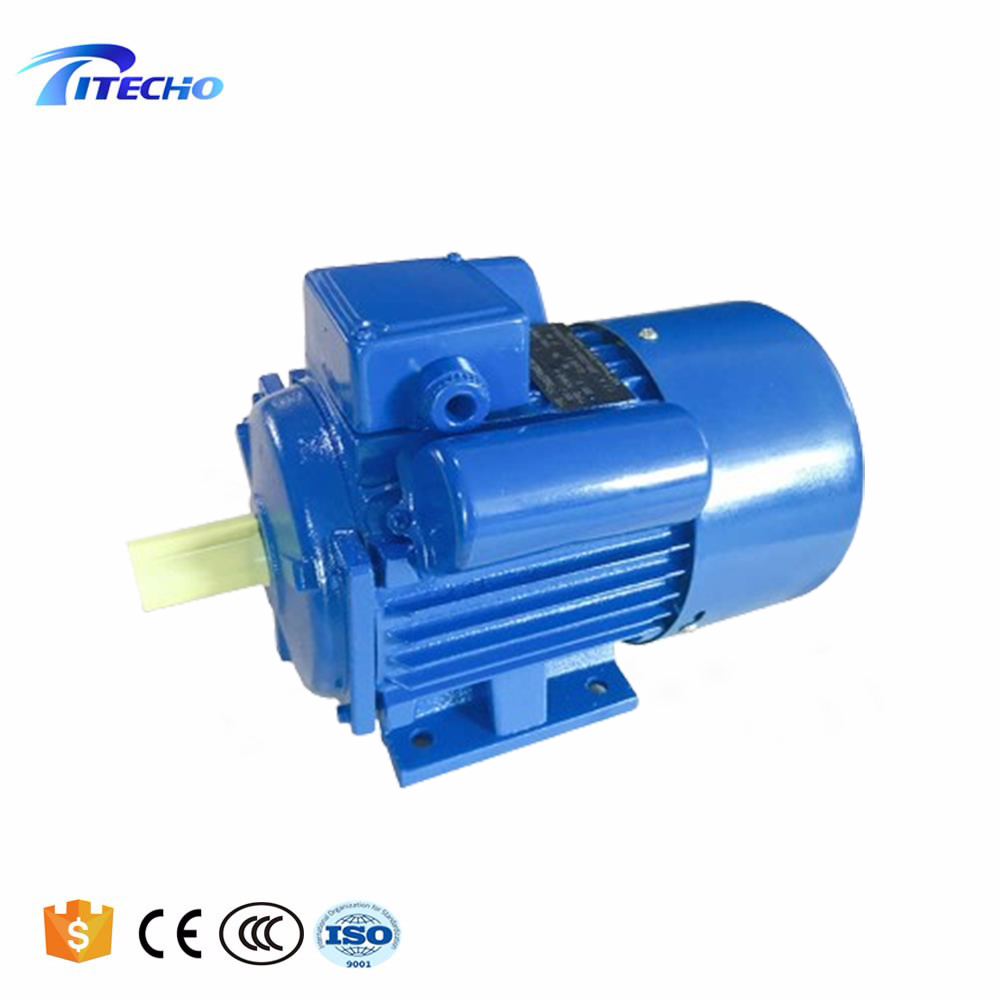

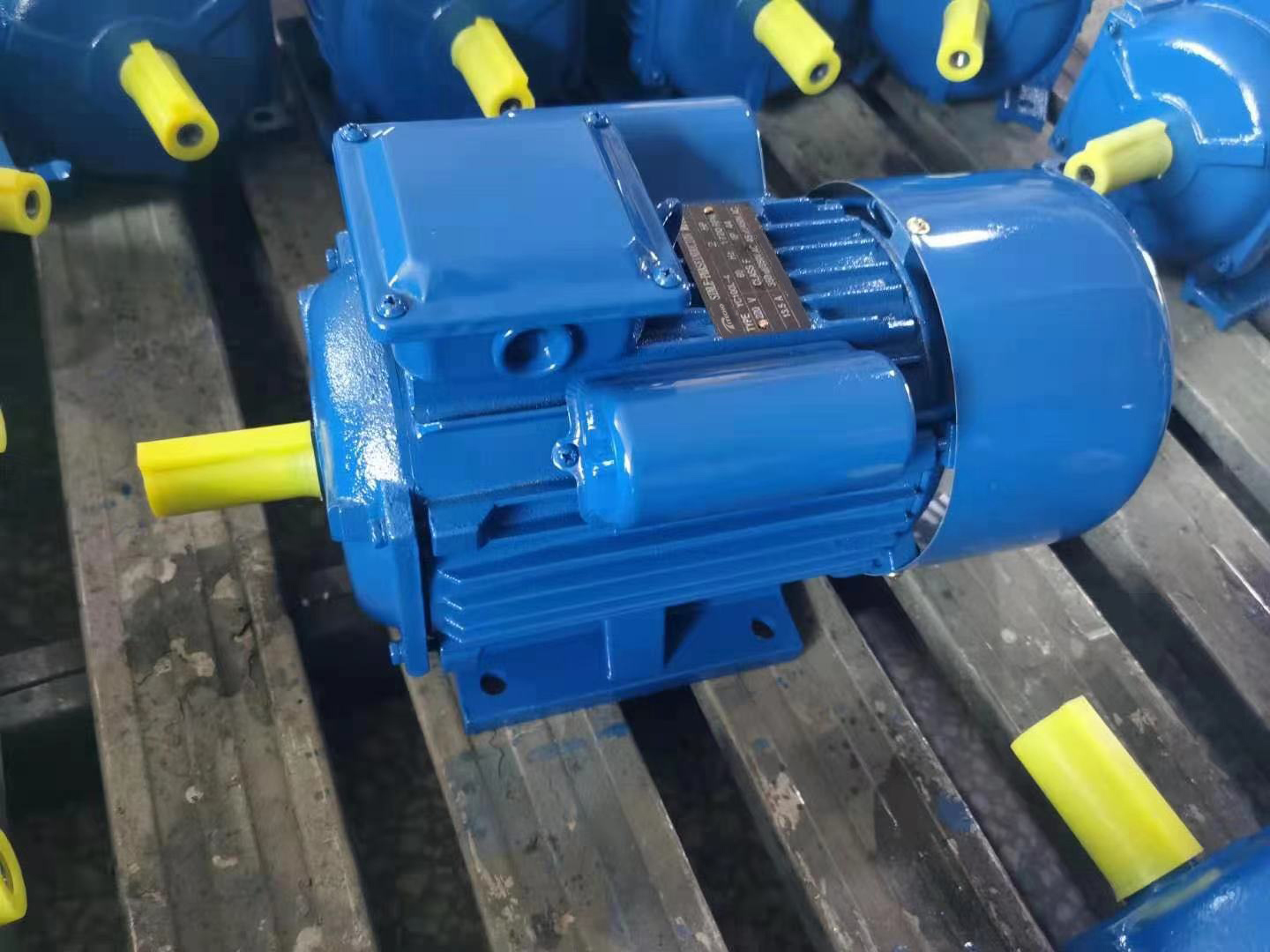

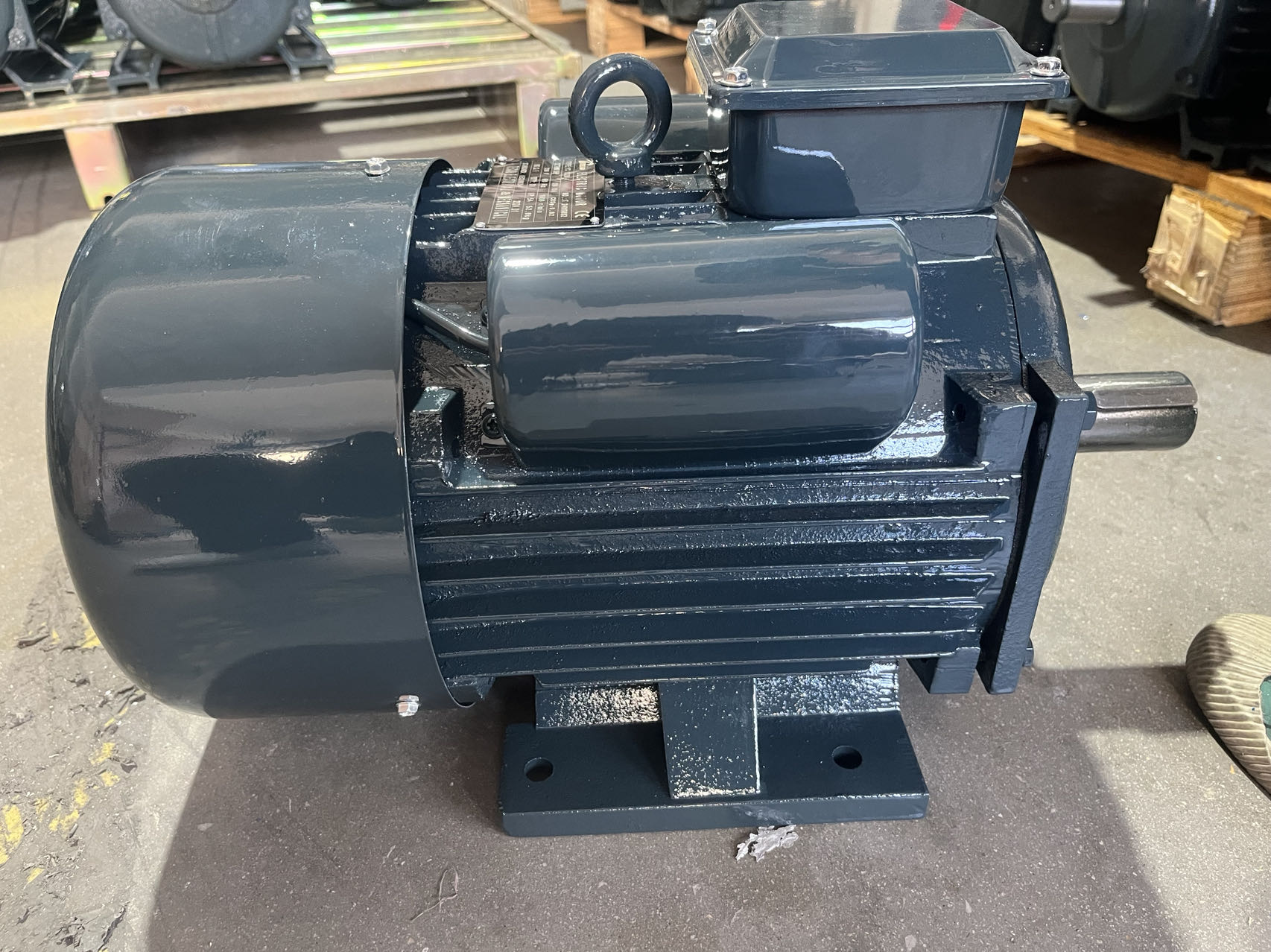

Single Phase Motor

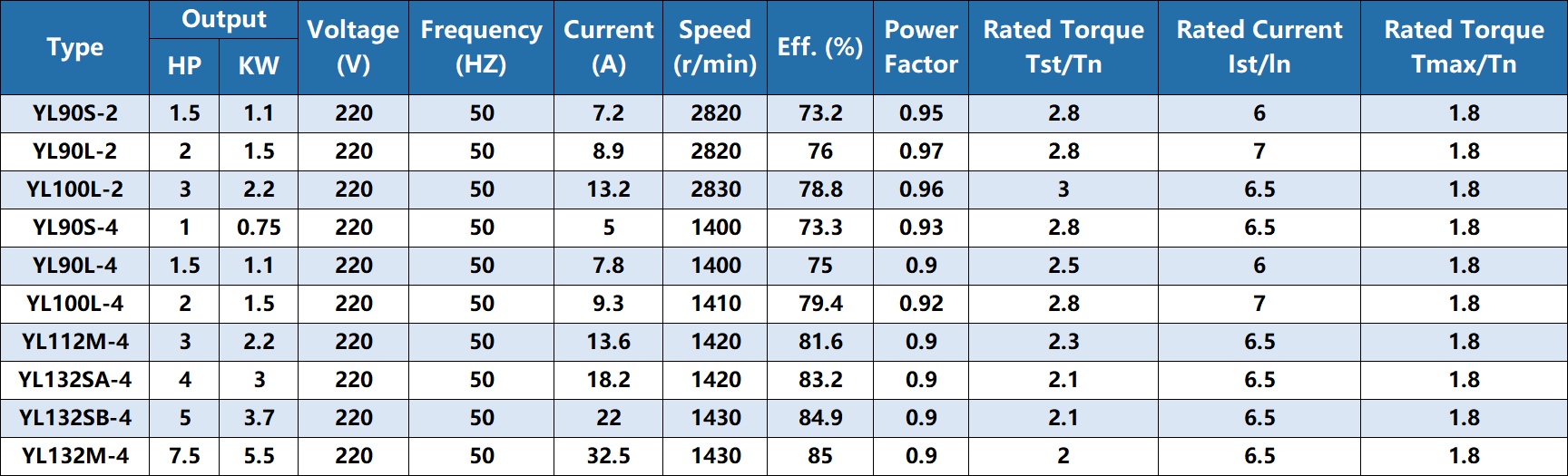

YC, YL series motor is designed and manufactured according to National JB/T9542 standardt has the characteristics of good starting and operation, Low noise. small measurement ancconvenient main- tenance. The motor is widely used in air compressor, reducer, gearbox,pump and variouskinds of machines.
| Parameters | Values |
|---|---|

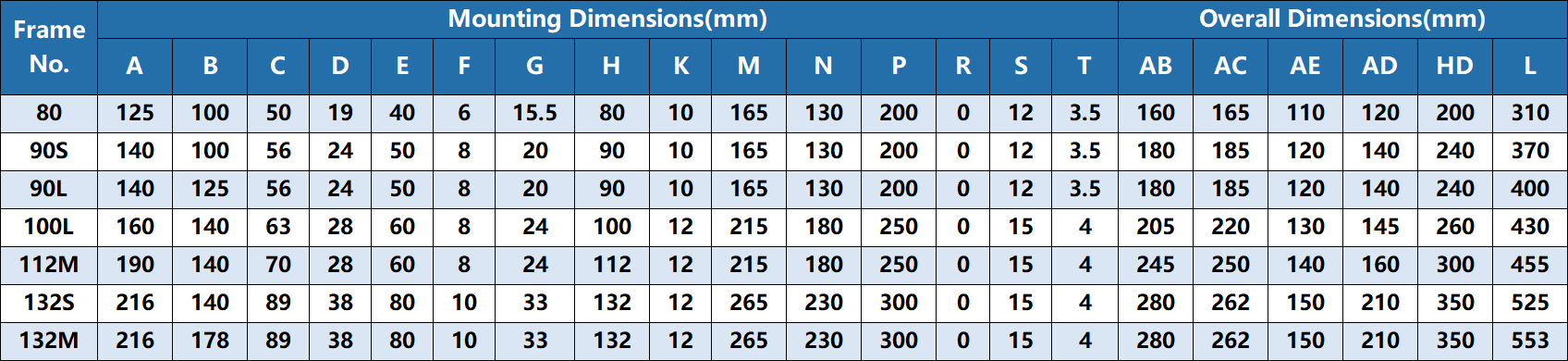

| Center height of frame | 80~132mm |
| Power range | 0.37~7.5kW |
| Rated voltage | 220V(or order) |
| Rated frequency | 50HZ(or 60Hz) |
| Insulation class | F |
| Protection class | IP 44 |
| Duty type | S1 |
| If you want more information, please consult me | |
