YBX3 11kw 15 hp rpm 2800 Three Phase AC Induction Explosion-proof Motor

YBX3-160M1-2
minimum order
1 piece
Supply Ability
1000.0piece / Week
Country of Origin
Ningbo, Shanghai, Guangzhou
Quantity:
USD328.80 - USD332.10 / piece
Contact Now
add to cart
  • Product Name:11kw 15 hp rpm 2800 Three Phase AC Induction Explosion-proof Motor
  • Motor Bearing:C&U (NSK OR SKF for Choice)
  • Motor Housing:Iron Cast
  • Motor Shaft:45# Steel
  • Protection class:IP44/IP54/IP55
  • Rotation Speed:1500 rpm
  • Insulation Class:F class
  • Color:As request
  • Warranty:12 Months
  • Brand:TECHO or OEM
  • Type:Asynchronous Motor
  • Phase:Three-phase
  • Certification:CCC
  • Certification:ce
  • Protect Feature:Waterproof
  • AC Voltage:110V,220V,380V,400V,415V,440V,660V
  • Efficiency:IE 2
  • Place of Origin:CN;ZHE
  • Warranty:1 Year
  • Brand Name:TECHO
  • Model Number:YBX3-160M1-2
  • Frequency:50HZ/60HZ
Product Description

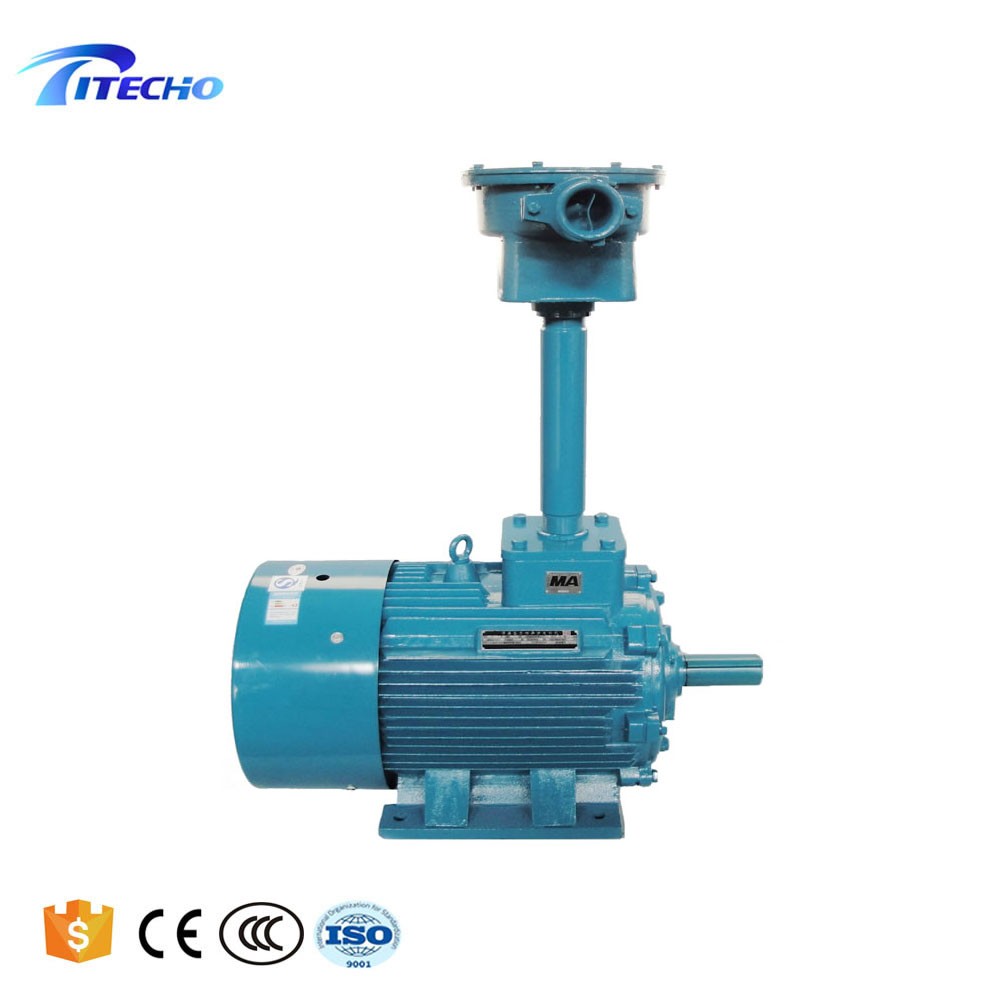

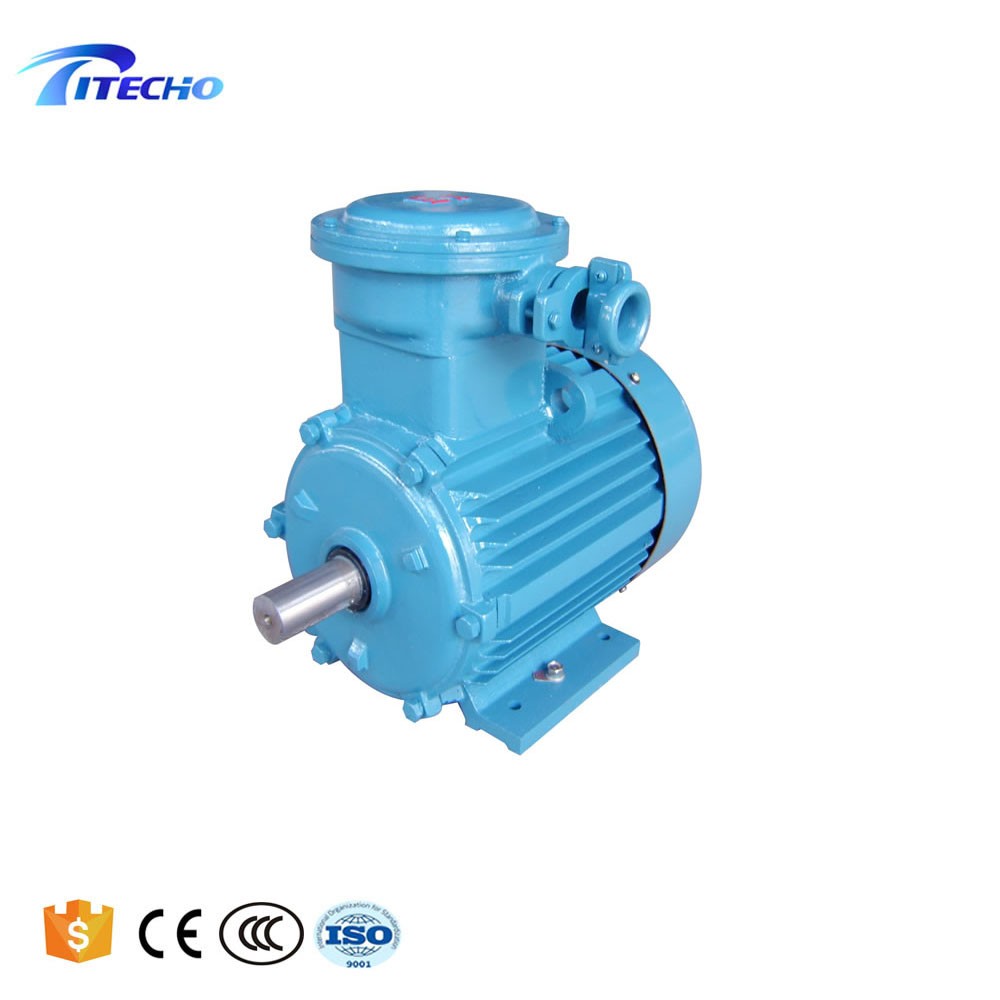

YBX3 11kw 15 hp rpm 2800 Three Phase AC Induction Explosion-proof Motor

Product Introduction

This series explosion-proof electric motor is the basic series of our products.The power class and measurements are in accordance with IEC standards,the explosion-proof performance is in accordance with GB3836.1 and GB3836.2.It can be used in any place where exists explosive gas mixture.
The maximum surface temperature of type I should be less than 150℃ (when the surface of electric motor may accumulate coal dust),or less than 450℃ (when the surface of electric motor won’t accumulate coal dust or you can prevent electric motor from coal dust by some measures); the maximum surface temperature of type II should be less than :T1(450℃),T2(300℃),T3(200℃),T4(135℃).
Technical Data
Centre height of frame:63mm~355mm
Power range:0.12kw-315kw
Rated voltage and frequency:380V、660V、1140V、660V/1140V、50Hz(special should order)
Protection class:IP55
Insulation class:F
Duty type:S1(continuous),allows starting with full voltage.
Type of cooling:IC411
Power below 3kw is star-connection;other power is delta-connection.
Model
YBX3-160M1-2
Power
11kw
Speed
2930r/min
Current
21A
Efficiency
89.4%
Power factor
0.89
Mounting
B3/B5/B35/B34
Voltage & Frequency
380V & 50Hz or Customized

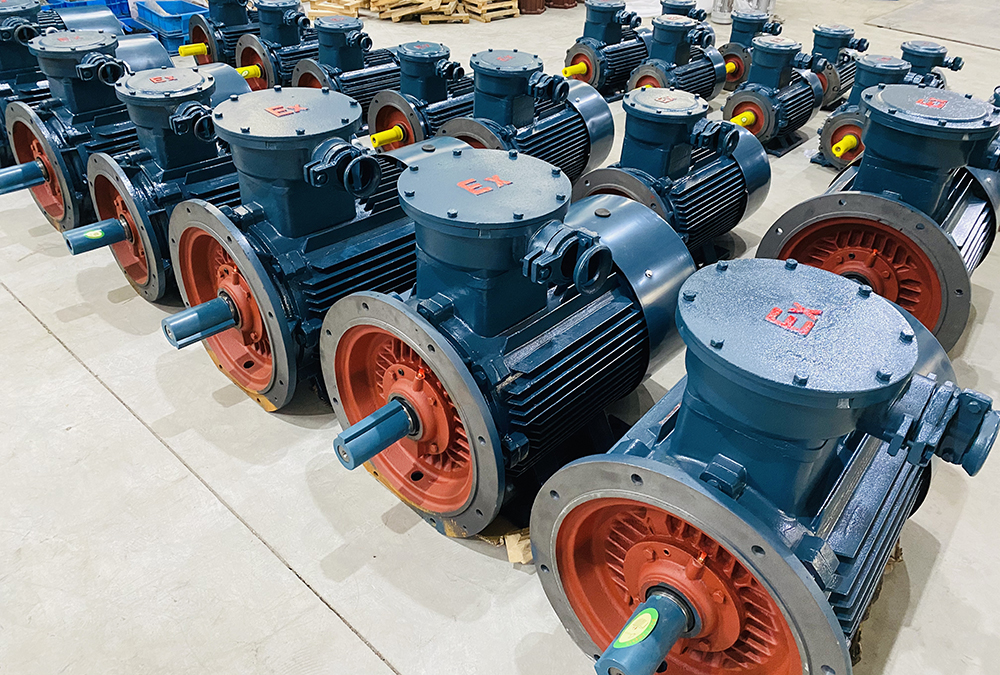

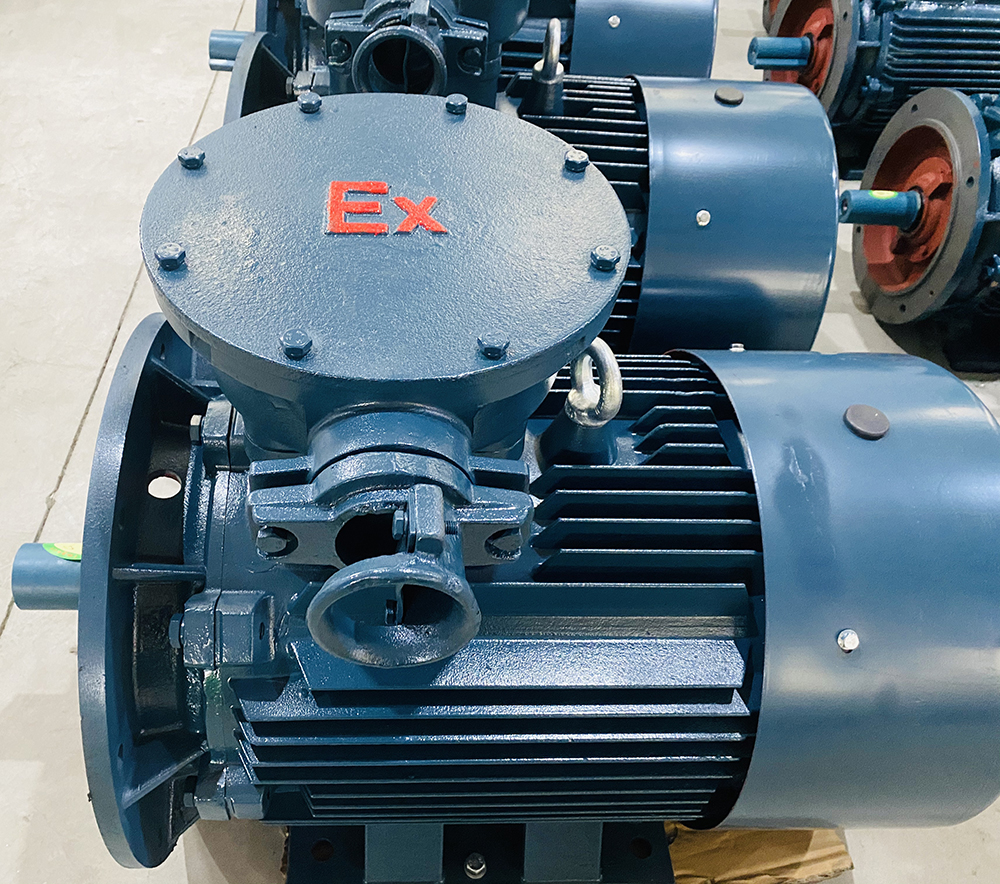

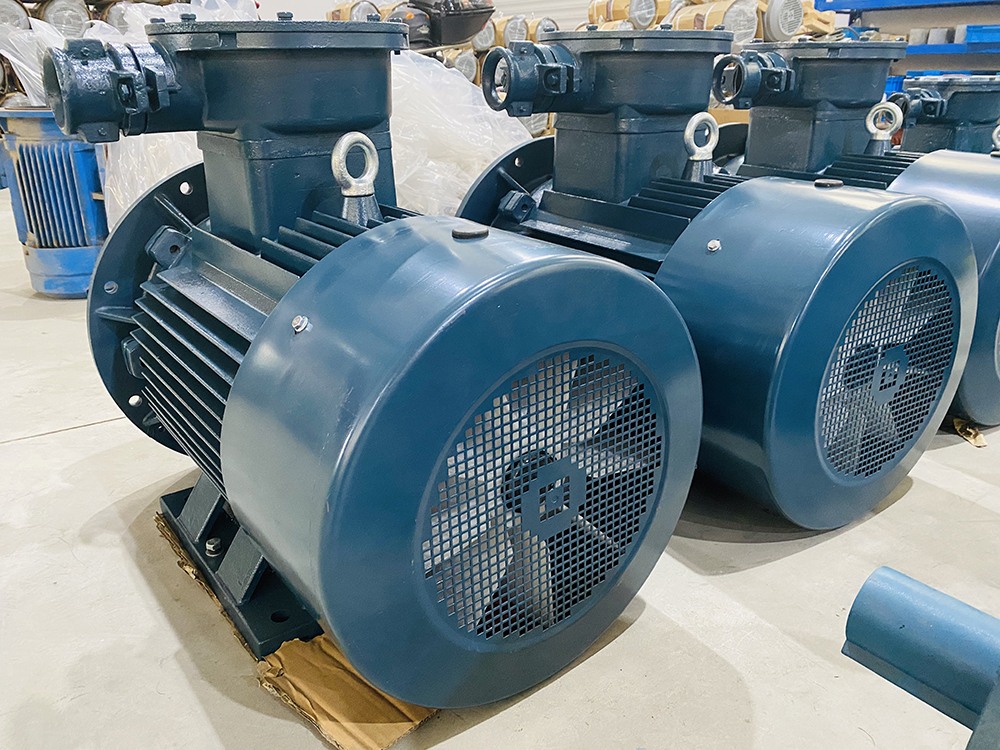

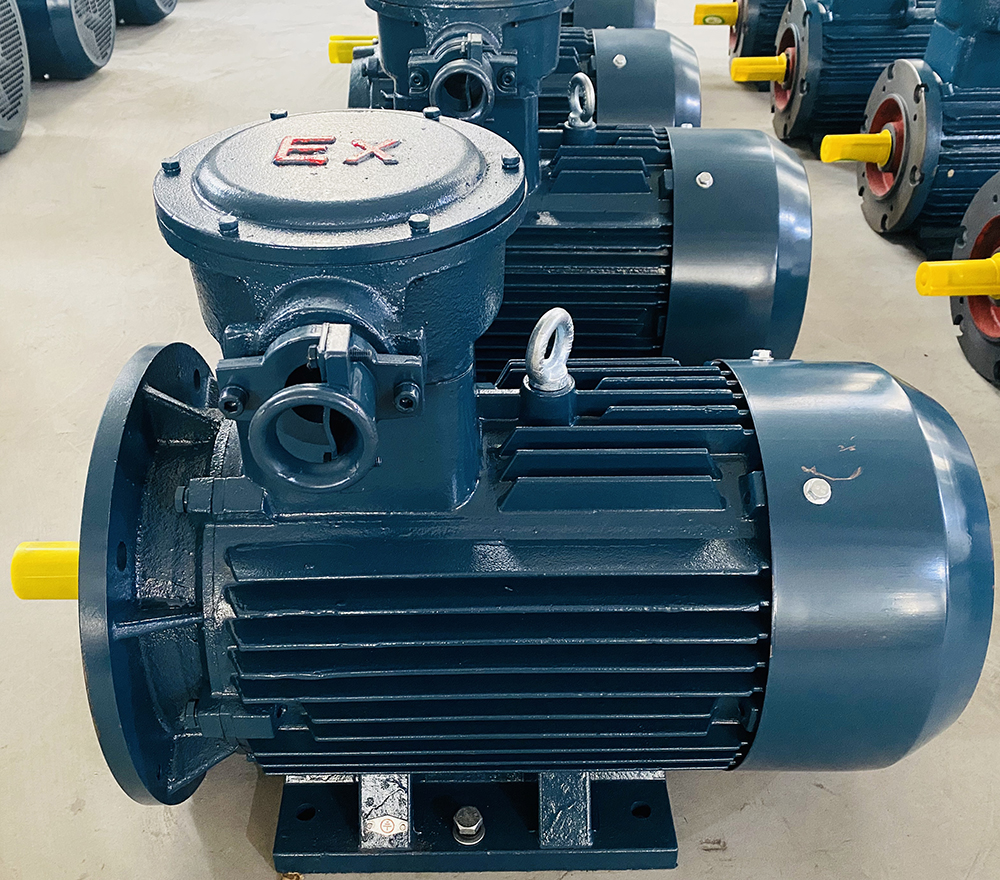

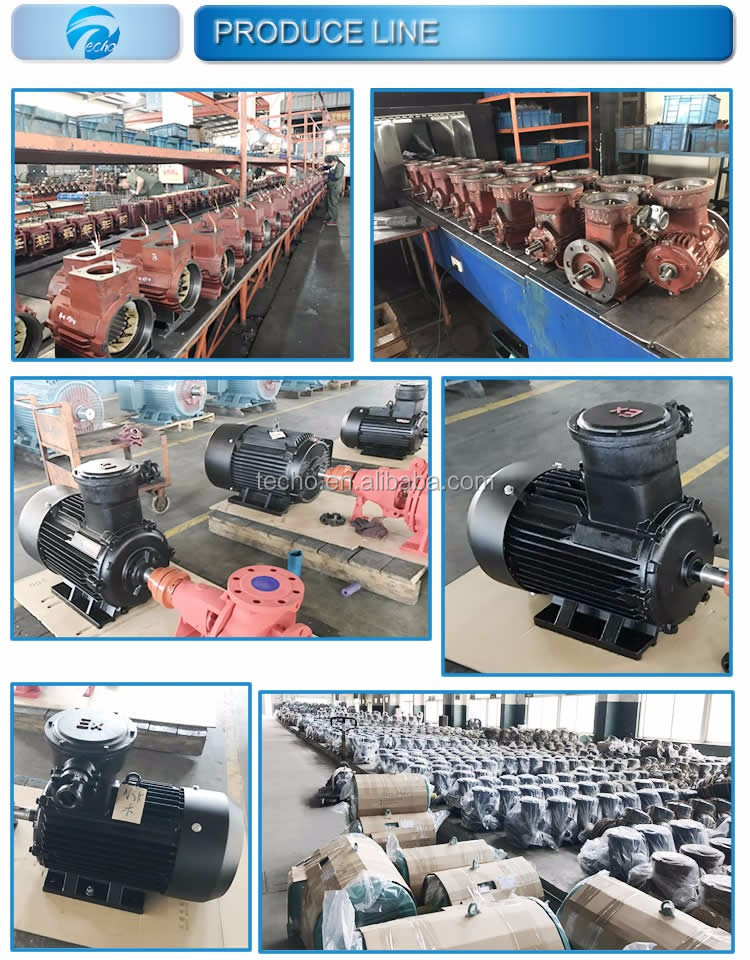

Products Show

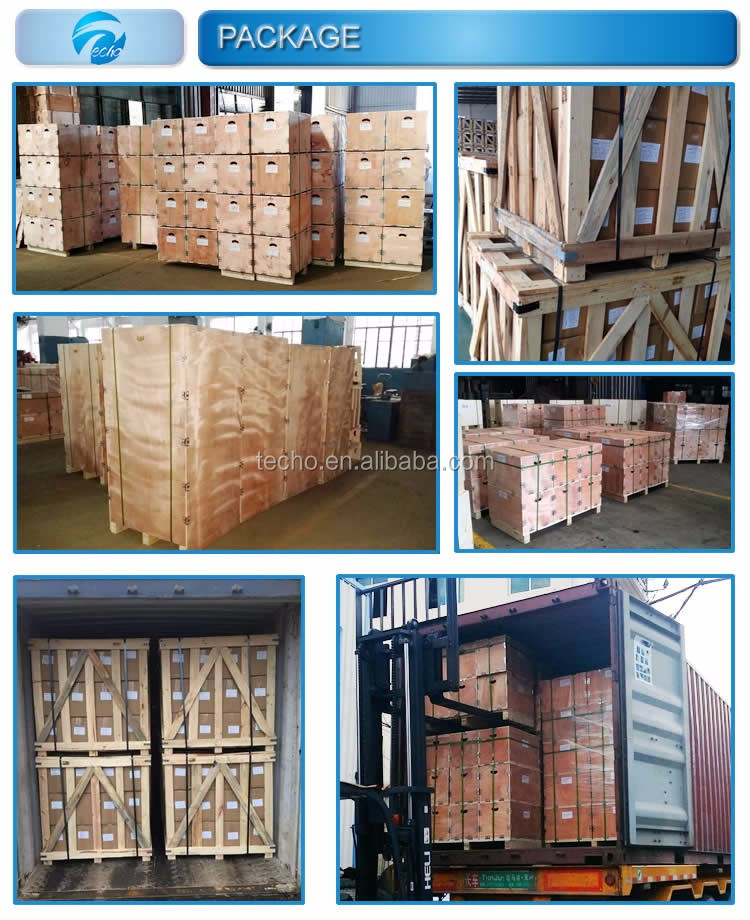

Packing & Delivery

Packing Details : Wooden Case Lined with Plastic Film Bags

Delivery Details : 3-30 days after order

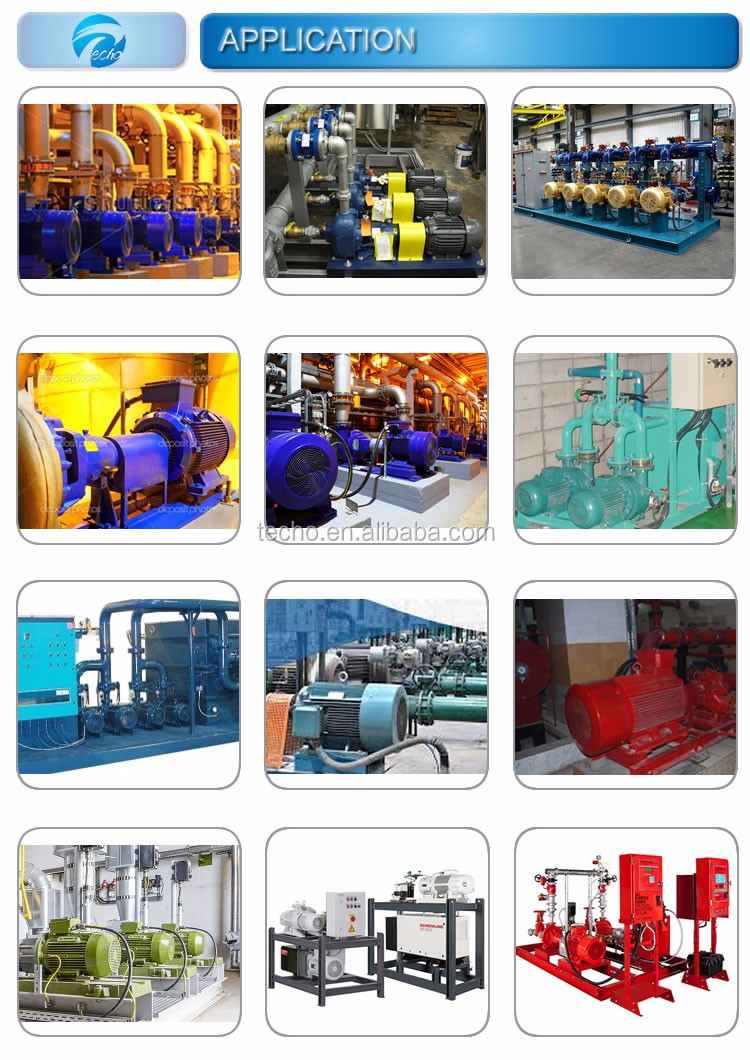

Motor Application
Our Certifications
Customer Photo
FAQ

--------Why the price is low?
A: You are ordering directly from the factory.


--------Do you have import and export right?
A:Yes, we do. Our factory has been certificated as an import and export enterprice.


--------Can we order a sample?
A: Yes, you can order a sample to check quality.


--------Do you accept the OEM?
A: Yes, we can customize as request.

Why Choose Us
